AIRBAG CLOCK SPRING

An airbag clock spring, also known as a spiral cable or rotary coupler, is a device that allows the steering wheel to rotate while maintaining the electrical connections to the driver's airbag, horn, and other steering wheel-mounted controls. It is located in the steering column, usually under the steering wheel.

The airbag clock spring, often referred to simply as the clock spring, is a lesser-known but essential component of modern vehicle safety systems. This coiled wire assembly plays a pivotal role in ensuring that the airbag system functions correctly. In this article, we will delve into the world of airbag clock springs, exploring their purpose, how they work, and their significance in keeping drivers and passengers safe.

The airbag clock spring is a coiled wire mechanism located in the steering column of a vehicle. It serves as a vital connector between various components of the vehicle's safety systems, including the airbag, horn, and steering wheel-mounted controls. Despite its unassuming appearance, the clock spring plays a crucial role in ensuring the proper functioning of these systems.

Airbag clock springs are an important safety feature in modern vehicles. They allow the steering wheel to rotate while maintaining the electrical connections to the driver's airbag, horn, and other steering wheel-mounted controls. This helps to ensure that the driver's airbag will deploy properly in the event of a collision, even if the steering wheel has been turned.

Call Us: (571) 417-5717

Airbag Clock Spring: A Critical Component of Vehicle Safety

The airbag clock spring is an essential yet often overlooked component of a vehicle's safety system. It ensures the electrical connection between the vehicle’s airbag and the steering wheel remains intact, even as the wheel is turned. This crucial part enables the airbag to deploy correctly during a collision, safeguarding the driver. This detailed guide delves into the functionality, benefits, types, maintenance, and considerations related to airbag clock springs, emphasizing their significance in automotive safety.

What is an Airbag Clock Spring?

An airbag clock spring, also known as a spiral cable or coil spring, is a wound, ribbon-like electrical connector. It is housed within the steering wheel and maintains a continuous electrical connection to the airbag, horn, and other steering wheel-mounted controls regardless of the steering wheel’s position. This ensures that the airbag system remains functional at all times, providing critical protection to the driver in the event of a collision.

Types of Airbag Clock Springs

Standard Clock Springs - Standard clock springs are designed to provide basic connectivity for airbag systems and steering wheel-mounted controls. They are commonly found in most vehicles and offer reliable performance for essential functions.

Advanced Clock Springs - Advanced clock springs support additional features, such as steering wheel audio controls, Bluetooth connectivity, and other modern amenities. These are typically found in higher-end or newer vehicle models, providing enhanced functionality and convenience.

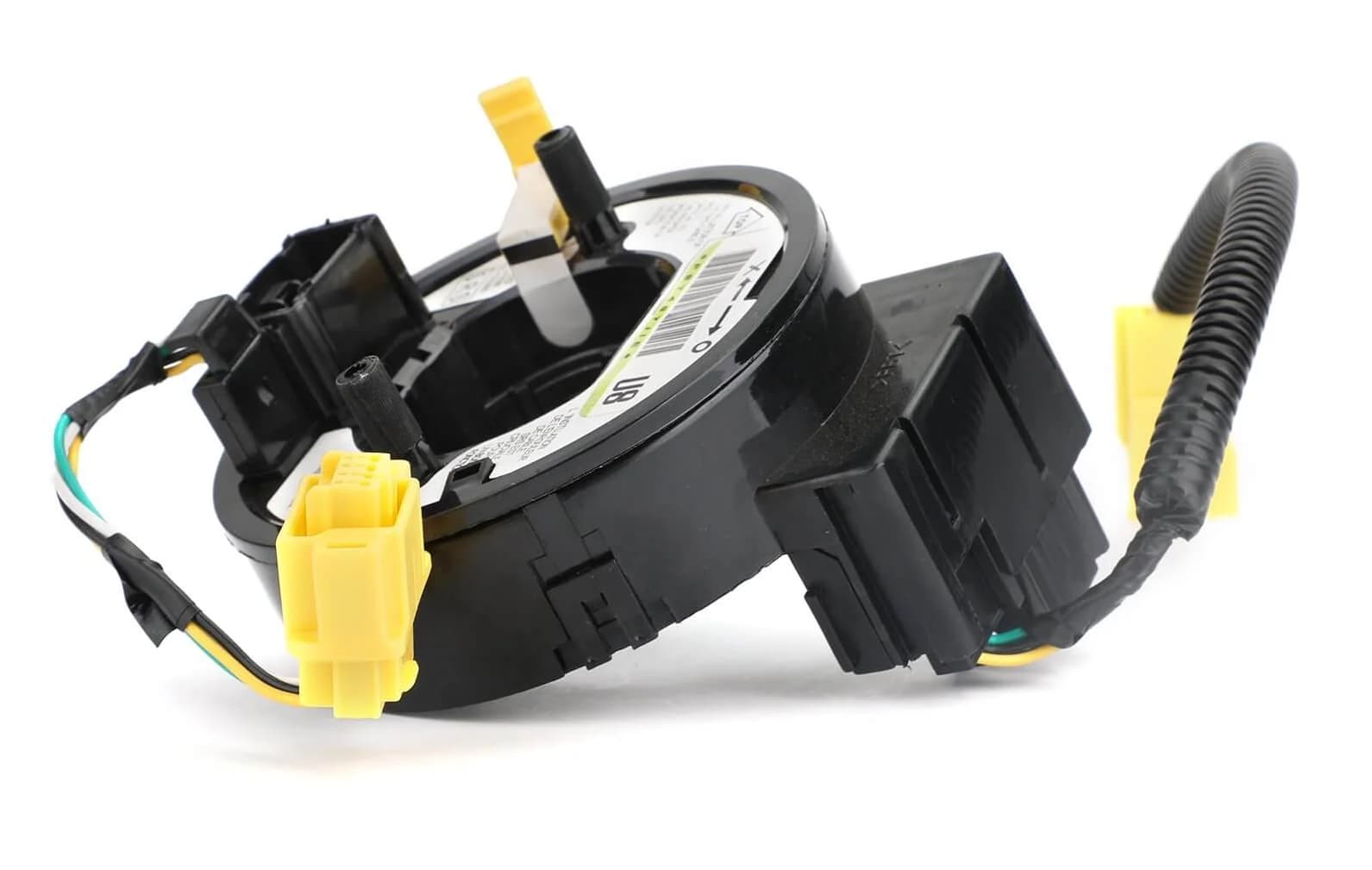

AIRBAG CLOCK SPRING

How Does an Airbag Clock Spring Work?

Structure and Components - The airbag clock spring consists of a flat, ribbon-like electrical circuit coiled inside a plastic housing. This housing is mounted between the steering wheel and the steering column. The ribbon cable winds and unwinds as the steering wheel turns, maintaining an electrical connection between the steering wheel’s controls and the vehicle’s electrical system.

Functionality

  • Continuous Electrical Connection: The primary function of the clock spring is to maintain an uninterrupted electrical connection. It allows the steering wheel to turn freely while keeping the electrical contacts intact.
  • Airbag Deployment: In the event of a collision, the clock spring ensures the airbag receives the necessary signal to deploy, providing immediate protection to the driver.
  • Control Integration: The clock spring also supports other steering wheel-mounted controls, such as the horn, cruise control, and audio system, ensuring they function correctly at all times.

Benefits of Airbag Clock Springs

Uninterrupted Airbag Functionality - The clock spring ensures the airbag system remains fully operational, even when the steering wheel is turned. This continuous connectivity is crucial for the timely deployment of the airbag during an accident.

Enhanced Safety - By maintaining the integrity of the airbag system, the clock spring significantly enhances the vehicle's overall safety. It ensures that the driver is protected in a collision, reducing the risk of serious injury.

Versatile Functionality - The clock spring supports various steering wheel-mounted controls, contributing to a more convenient and user-friendly driving experience. It integrates multiple electrical connections within a compact, durable design.

FAQs About Airbag Clock Springs

Can an airbag clock spring fail?
Yes, clock springs can wear out or become damaged over time. Common signs of a failing clock spring include a non-functional horn, illuminated airbag warning light, or issues with steering wheel controls.

How is a faulty clock spring diagnosed and repaired?
Diagnosis is typically done by a qualified technician using specialized tools and diagnostic equipment. Replacing a faulty clock spring is a precise and safety-critical task that should only be performed by trained professionals.

Can I drive with a faulty airbag clock spring?
It is not advisable to drive with a faulty clock spring because it can affect the proper functioning of the airbag system and other safety features. If you suspect an issue, it's best to have it inspected and repaired promptly.
